Union Process Introduces PT5 Premixing Tank with Pump Assembly for Circulation Grinding

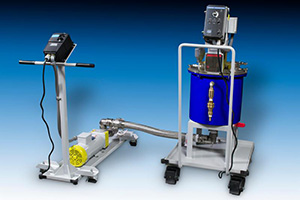

PT5 Premixing Tank

Akron, Ohio. . .Union Process, Inc., known globally as a manufacturer of particle size reduction and dispersing equipment, as well as a supplier of grinding media and materials characterization services for a broad range of research and industrial applications, has manufactured a new mobile premix tank with a pump assembly.

The 5-gallon, PT5 premix tank is constructed of 304SS with a carbon steel jacket for cooling. The tank includes a sealed cover assembly for low vacuum and a gauge. A sight glass and ¾” product inlet allow for the user to monitor the slurry inside the tank. The cover and drive assembly are fastened to the premix tank with simple-to-use hand knobs. The tank and drive are mounted on a specially designed mobile cart with two locking swivel casters and two fixed casters.

The associated Seepex pump assembly is an eccentric screw type with a DC motor operated through a DC drive with input power of 115v/1PH/60Hz. The drive is housed in a NEMA4 wash down enclosure. Similar to the tank, the pump assembly is attached to a mobile cart. Both carts have drip pans with drain plugs.

Sales Manager Chuck Major noted, “The real advantage to the customer here is the mobility this system offers. The ability to easily transport the tank/pump system to anywhere in the plant is a huge benefit to many of our customers.”

Since 1946, Union Process has been developing and building custom Attritors for customers with a wide variety of applications all around the world.

Union Process is the inventor and developer of Attritor technology and manufactures wet and dry grinding mills as well as horizontal bead mills.

Attritor is a registered trademark of Union Process, Inc.
